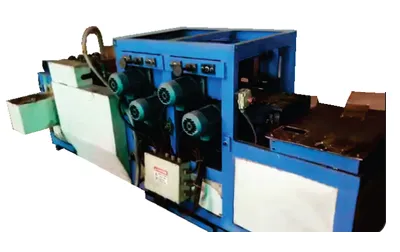

Lug Brushing Machines, Manufacturer, Supplier, Exporter, India

Machine Specifications: :

1)	Capacity	80 Multi-panels per minute MAX. Advised to run at 60 Multi-panels per minute for optimum results.
2)	Multi-panel width Multi-panel Height Multi-panel Thickness	180mm to 320mm (inclusive of lugs) 110mm to 200mm 1.2mm to 4.5mm
3)	A) Power	Three phase x 415 V x 50 Hz
	B) Control Panel	a) Electrical control panel with switchgears, VFD and controls. All motors with individual protection. b) Electrical Pendant which will be handy for operator's ease.
4)	Exhaust Required	6000 m 3/Hr
5)	Power Required	0.5 HP motors - 10 Nos. 1.0 HP motors - 01 Nos. 3.0 HP motors - 01 Nos. TOTAL CONSUMPTION - 09 HP per machine
5)	Machine Dimensions :
	Machine Length Machine Width Machine Height Machine Weight	4.0 meter 1.6 meter 1.500 meter 1000 kg
